BFT150

BFT150

HIGH POWER

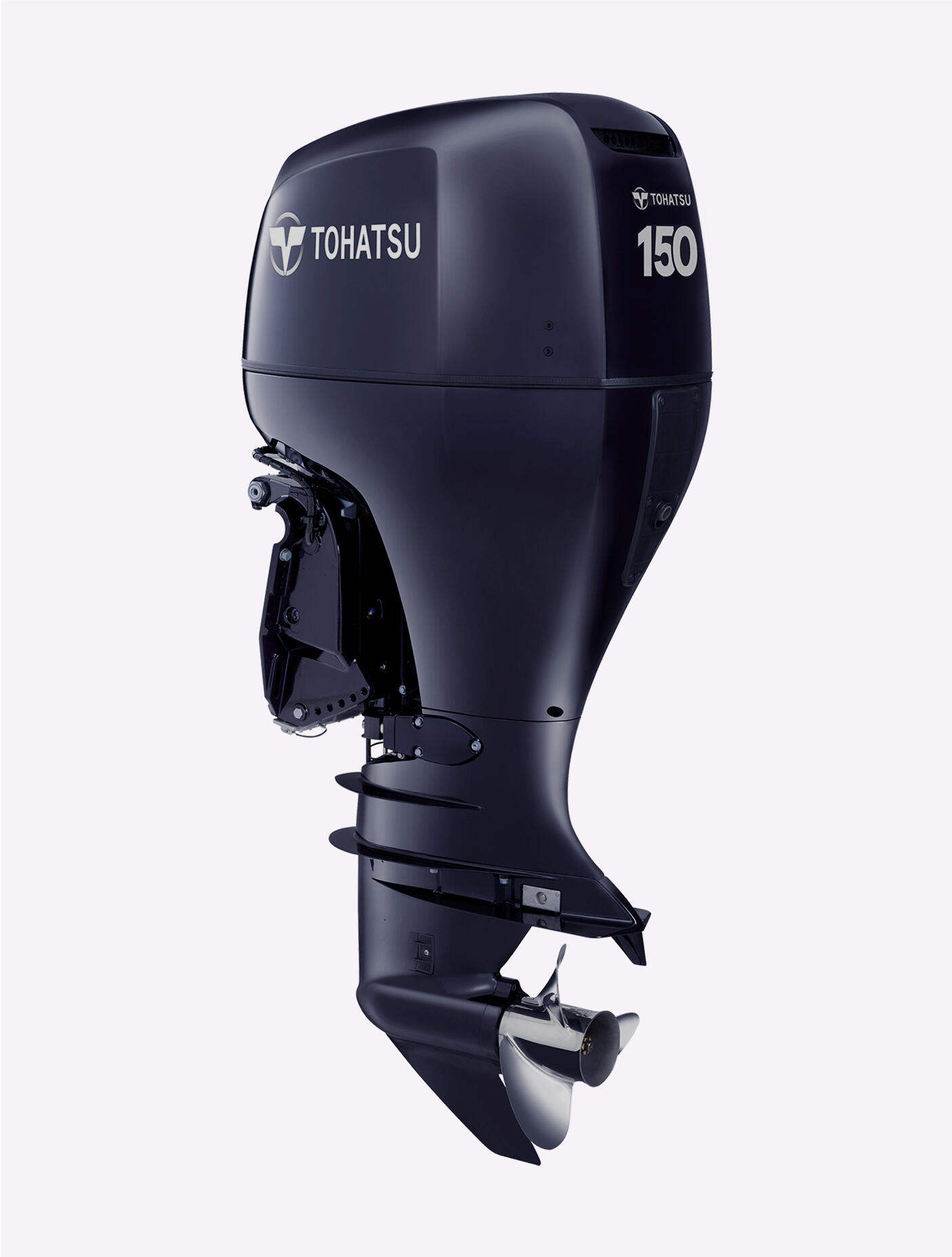

The Tohatsu in-line 4 cylinder 150 hp 4-stroke outboard is both sleek and powerful. The Variable Valve Timing and Lift Control system provides power where and when you need it, giving you excellent low end torque and top end speed. The result is a superior combination of power, torque and fuel efficiency.

The 150hp also features Optimized Fuel Injection, which delivers the precise amount of fuel/air to each cylinder. This gives you easy starting and an instant throttle response. Plus, the 3-way cooling system provides added protection from over heating. You’ll enjoy worry-free boating with the Tohatsu four stroke 150 hp outboard.

Tohatsu 150 hp 4-Stroke Benefits

  • High output alternator produces 30 amps of power at 1,000 rpms and 40 amps at 2,000+ rpms
  • Available in 20” & 25” shaft lengths, standard or counter rotation
  • In-line 4 cylinder for excellent performance and sleek design
  • Double sealed multi-layered paint process to help protect against corrosion
  • Ultra-low 3 star CARB emission approved
  • 5 Year limited warranty

4-Stroke Technology

  • Dual stage induction for improved performance
  • Lean burn control for better fuel economy at cruising speeds
  • Variable valve timing and lift control
  • 3-way cooling system to help protect against overheating
  • Non-linear rubber mounts provide smoother operation at all engine speeds
  • A crankshaft-driven trochoid oil pump ensures long-term durability of critical engine components
  • Optimized fuel injection delivers the precise amount of fuel/air to each cylinder

Fundamentals for User Convenience and Reliability

  • Through the prop exhaust for a quieter ride
  • Built-in freshwater flushing system for easy routine flushing
  • Sealed starter motor that is inverted into a sealed chamber to help protect vital components against elements
  • Electronic Control Module protocols allow engine data to be interfaced with on-board systems and systems displays, such as SONAR or GPS

Warning & Protection

  • Low oil pressure warning
  • Overheat warning
  • Low battery voltage warning
  • Start-in-gear protection
  • Over-rev. limiter

FEATURES

Variable Valve Timing and Lift Control

system provides power where and when you need it. This gives you a broader, flatter torque curve and smooth power delivery throughout the engine’s operating range. The result is a superior combination of power, torque and fuel efficiency.

Dual Stage Induction – Breathing easier improves performance

BFT 225 has a unique variable intake system which optimizes air flow to match the engine’s speed. The results are maximized combustion efficiency, increased torque, and superb fuel economy.

4-front Corrosion Protection System

A patented, “Double Sealed” multi-layered paint process, sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.

SPECIFICATIONS

Engine (No. of Cylinder)4 Cylinder DOHC 16 Valves
Output150 hp (119.9 kw)
Displacement2,354 cc (143.6 cu.in.)
Bore x Stroke87 x 99 mm (3.4 x 3.9 in)
StartingElectric
Control TypeRemote Control
Gear ShiftForward – Neutral – Reverse
Gear Ratio2.14:1
Ignition SystemMicroComputer Programmed
Transom Height20″, 25″
FuelUnleaded Gasoline (87 Octane) or higher
Oil TypeNMMA Certified FC-W® 4-stroke oil** SAE 10W-30 (SF, SG, SH, SJ)
Oil Capacity1.8 gal. (6.7 L) with filter
Weight*478 lbs. (217 kg)
Alternator Output12V, 480W, 55A
Max. RPM Range5,000 – 6,000
Programmed Fuel InjectionStandard
Direct Fuel InjectionStandard
Start In Gear ProtectionStandard
Thermostat Controlled Cooling SystemStandard
Through-The-Prop ExhaustStandard
Overheat BuzzerStandard
Power Trim and TiltStandard
Oil Pressure WarningStandard
Variable Valve Timing & Lift ControlStandard
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
ModelMSRPShaft LengthCylindersElectric StartRemote ControlPower
Trim &Tilt
Counter Rotation
BFT150ALA$17,223204SSS
BFT150AXA$17,393254SSS
BFT150AXCA$17,879254SSSS
S:Standard
  • MSRP is the “Manufacturer’s Suggested Retail Price” (US$). Actual retail price may vary. Please contact your local dealer for actual retail price.
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
