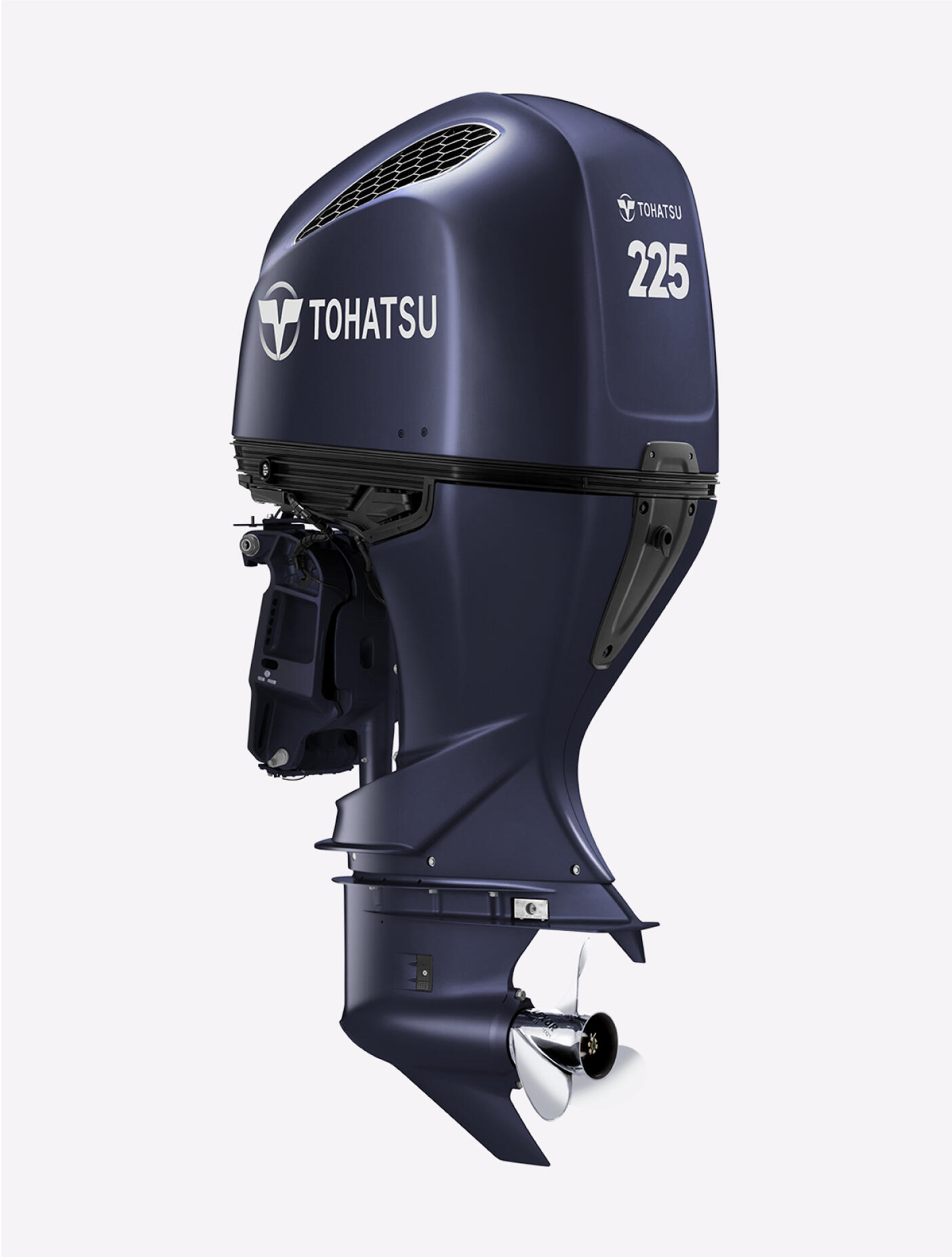

BFT225

BFT225

HIGH POWER

The 225 hp large displacement 3.5 liter V6, our second highest horsepower four stroke, comes equipped with the Variable Valve Timing and Lift Control system. This provides power where and when you need it, giving you a broader, flatter torque curve and smooth power delivery throughout the engine’s operating range. The result is a superior combination of power, torque and fuel efficiency. Also equipped with Optimized Fuel Injection which delivers the precise amount of fuel/air to each cylinder.

The heavy duty 5” diameter gear case was built to withstand extreme conditions, giving you the peace of mind on the water every boater is looking for. Equipped with non-linear rubber mounts which provide less vibration at all engine speeds, the BFT 225 hp four stroke outboard has the power, has the reliability and even has the comfort, making it the perfect 225hp outboard for you to own.

Tohatsu 225 hp 4-Stroke Benefits

  • High output alternator that produces 90 amp alternator with 60 charging amps
  • Large Displacement 3.5 Litre V6
  • Available in 20” & 25” shaft lengths. Standard and Counter rotation
  • Double sealed multi-layered paint process to help protect against corrosion
  • Painted interior cooling passages for extra protection against corrosion
  • Ultra-low 3 star CARB emission approved
  • 5 Year limited warranty

4-Stroke Technology

  • Dual Stage Induction for improved performance
  • Lean burn control for better fuel economy at cruising speeds
  • Maximum Acceleration System helps to deliver an exceptional hole shot
  • Variable valve timing and lift control
  • 3-Way Cooling System to help protect against overheating
  • Heavy duty 5” diameter gear case built to withstand extreme conditions
  • Non-linear rubber mounts provide smoother operation at all engine speeds
  • A crankshaft-driven trochoid oil pump ensures long-term durability of critical engine components
  • Optimized Fuel Injection delivers the precise amount of fuel/air to each cylinder

Fundamentals for User Convenience and Reliability

  • Through the prop exhaust for a quieter ride
  • Built-in freshwater flushing system for easy routine flushing
  • Sealed starter motor that is inverted into a sealed chamber to help protect vital components against elements
  • Electronic Control Module protocols allow engine data to be interfaced with on-board systems and systems displays, such as SONAR or GPS

Warning & Protection

  • Low oil pressure warning
  • Overheat warning
  • Low battery voltage warning
  • Water in fuel warning
  • Start-in-gear protection
  • Over-rev. limiter

FEATURES

Variable Valve Timing and Lift Control

system provides power where and when you need it. This gives you a broader, flatter torque curve and smooth power delivery throughout the engine’s operating range. The result is a superior combination of power, torque and fuel efficiency.

Large Displacement V6

A poweful compact 24 valve Single Overhead Cam [SOHC] design. The narrow V6 design offers top performance and durability as well as great fuel economy.

Dual Stage Induction – Breathing easier improves performance

BFT 225 has a unique variable intake system which optimizes air flow to match the engine’s speed. The results are maximized combustion efficiency, increased torque, and superb fuel economy.

4-front Corrosion Protection System

A patented, “Double Sealed” multi-layered paint process, sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.

SPECIFICATIONS

Engine (No. of Cylinder)6 Cylinder SOHC, 60? V6, 24 Valve
Output225 hp (167.8 kw)
Displacement3,471 cc (211.7 cu.in.)
Bore x Stroke89 x 93 mm (3.5 x 3.7 in)
StartingElectric
Control TypeRemote Control
Gear ShiftForward – Neutral – Reverse
Gear Ratio1.86:1
Ignition SystemMicroComputer Programmed
Transom Height20″, 25″
FuelUnleaded Gasoline (87 Octane) or higher
Oil TypeNMMA Certified FC-W® 4-stroke oil** SAE 10W-30 (SF, SG, SH, SJ)
Oil Capacity2.1 gal. (7.8 L) with filter
Weight*589 lbs. (267 kg)
Alternator Output12V, 720W, 90A
Max. RPM Range5,000 – 6,000
Programmed Fuel InjectionStandard
Digital CD Ignition SystemStandard
Start In Gear ProtectionStandard
Thermostat Controlled Cooling SystemStandard
Through-The-Prop ExhaustStandard
Overheat BuzzerStandard
Power Trim and TiltStandard
Oil Pressure WarningStandard
Variable Valve Timing & Lift ControlStandard
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
ModelMSRPShaft LengthCylindersElectric StartRemote ControlPower
Trim &Tilt
Counter Rotation
BFT225ALA$23,411206SSS
BFT225AXA$23,511256SSS
BFT225AXCA$24,396256SSSS
S:Standard
  • MSRP is the “Manufacturer’s Suggested Retail Price” (US$). Actual retail price may vary. Please contact your local dealer for actual retail price.
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
