BFT90

BFT90

MID RANGE

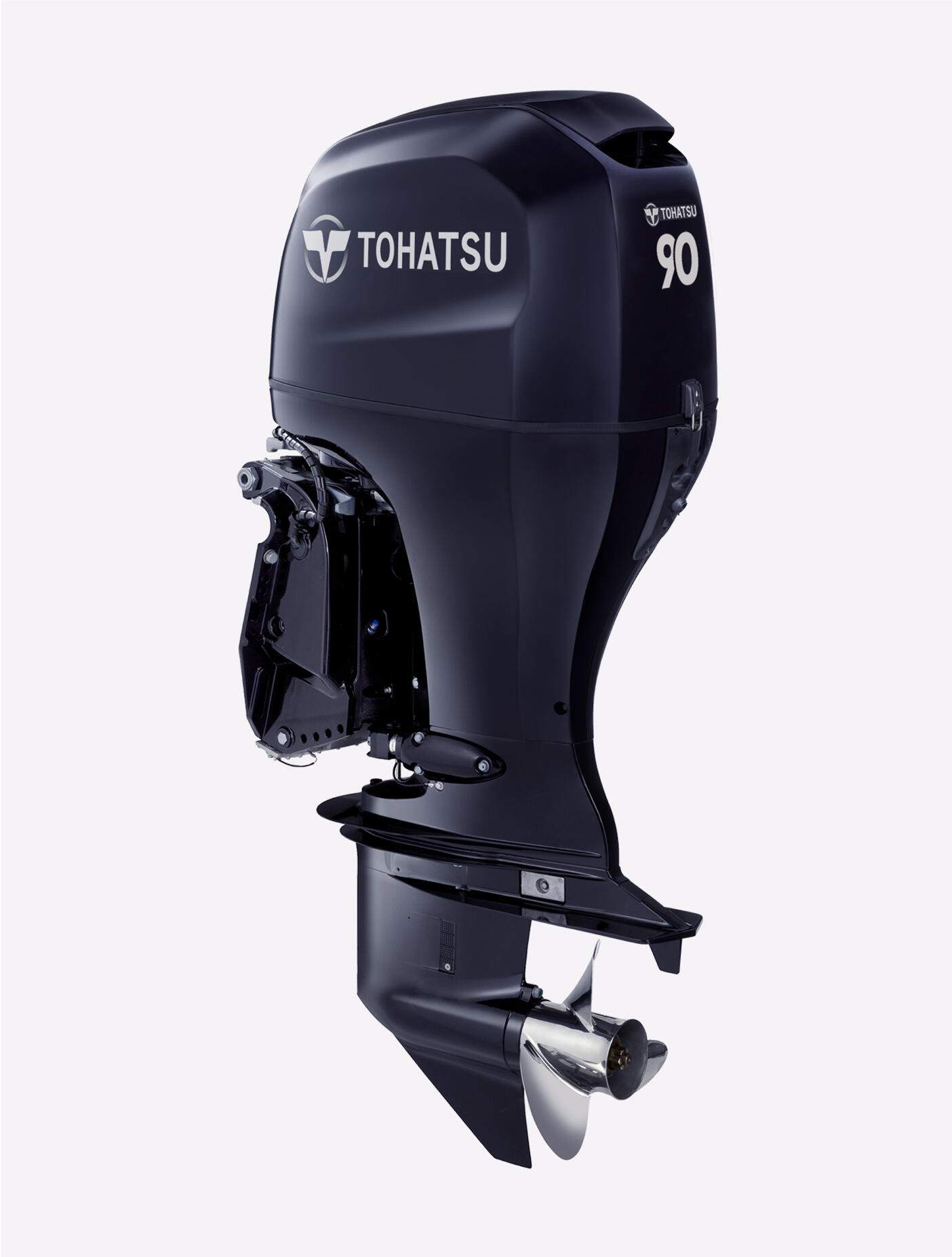

Meet the versatile and dependable Tohatsu 90 hp four stroke outboard. In-line 4 cylinder SOHC delivers exceptional torque and power, while still weighing in at only 359 pounds, which makes the BFT 90hp one of the lightest motors in its class. The convenience is even built right into the engine with the built-in freshwater flushing system, for easy routine flushing. To protect against corrosion, the BFT 90 hp has a “Double Sealed” multi-layered paint process, sacrificial anodes and stainless steel technology, along with waterproof connectors, all of which work to enhance your motor’s corrosion protection. Reliability and durability come standard on this high-power, proven-technology four stroke outboard engine.

Tohatsu 90 hp 4-Stroke Benefits

  • High output 44 amp alternator that produces nearly twice as many charging amps as some competitors
  • Weighing in at only 359lbs makes the BFT90 one of the lightest motors in its class
  • In-line 4 cylinder SOHC, dual intake valves help deliver excellent torque and power
  • Double sealed multi-layered paint process to help protect against corrosion
  • Ultra-low 3 star CARB emission approved
  • 5 Year limited warranty

4-Stroke Technology

  • Dual stage induction for improved performance
  • Variable valve timing and lift control
  • Maximum Acceleration System helps to deliver an exceptional hole shot
  • Lean burn control for better fuel economy at cruising speeds
  • 3-way cooling system to help protect against overheating
  • A crankshaft-driven trochoid oil pump ensures long-term durability of critical engine components
  • Optimized fuel injection delivers the precise amount of fuel/air to each cylinder

Fundamentals for User Convenience and Reliability

  • Through the prop exhaust for a quieter ride
  • Built-in freshwater flushing system for easy routine flushing
  • Sealed starter motor that is inverted into a sealed chamber to help protect vital components against elements
  • Electronic Control Module protocols allow engine data to be interfaced with on-board systems and systems displays, such as SONAR or GPS

Warning & Protection

  • Low oil pressure warning
  • Overheat warning
  • Start-in-gear protection
  • Over-rev. limiter

FEATURES

Variable Valve Timing and Lift Control

system provides power where and when you need it. This gives you a broader, flatter torque curve and smooth power delivery throughout the engine’s operating range. The result is a superior combination of power, torque and fuel efficiency.

Dual Stage Induction – Breathing easier improves performance

BFT 225 has a unique variable intake system which optimizes air flow to match the engine’s speed. The results are maximized combustion efficiency, increased torque, and superb fuel economy.

4-front Corrosion Protection System

A patented, “Double Sealed” multi-layered paint process, sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.

SPECIFICATIONS

Engine (No. of Cylinder)4 Cylinder SOHC
Output90 hp (67.1 kw)
Displacement1,496 cc (91.3 cu.in.)
Bore x Stroke73 x 89 mm (2.9 x 3.5 in)
StartingElectric
Control TypeRemote Control
Gear ShiftForward – Neutral – Reverse
Gear Ratio2.33:1
Ignition SystemMicroComputer Programmed
Transom Height20″
FuelUnleaded Gasoline (87 Octane) or higher
Oil TypeNMMA Certified FC-W® 4-stroke oil** SAE 10W-30 (SF, SG, SH, SJ)
Oil Capacity1.24 gal. (4.4 L) w/filter
Weight*366 lbs. (166 kg)
Alternator Output12V, 420W, 44A
Max. RPM Range5,300 – 6,300
Programmed Fuel InjectionStandard
Digital CD Ignition SystemStandard
Start In Gear ProtectionStandard
Thermostat Controlled Cooling SystemStandard
Through-The-Prop ExhaustStandard
Overheat BuzzerStandard
Power Trim and TiltStandard
Oil Pressure WarningStandard
Variable Valve Timing & Lift ControlStandard
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
ModelMSRPShaft LengthCylindersElectric StartRemote ControlPower
Trim &Tilt
BFT90ALRTA$13,100204SSS
BFT90AXRTA$13,891254SSS
S:Standard
  • MSRP is the “Manufacturer’s Suggested Retail Price” (US$). Actual retail price may vary. Please contact your local dealer for actual retail price.
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
