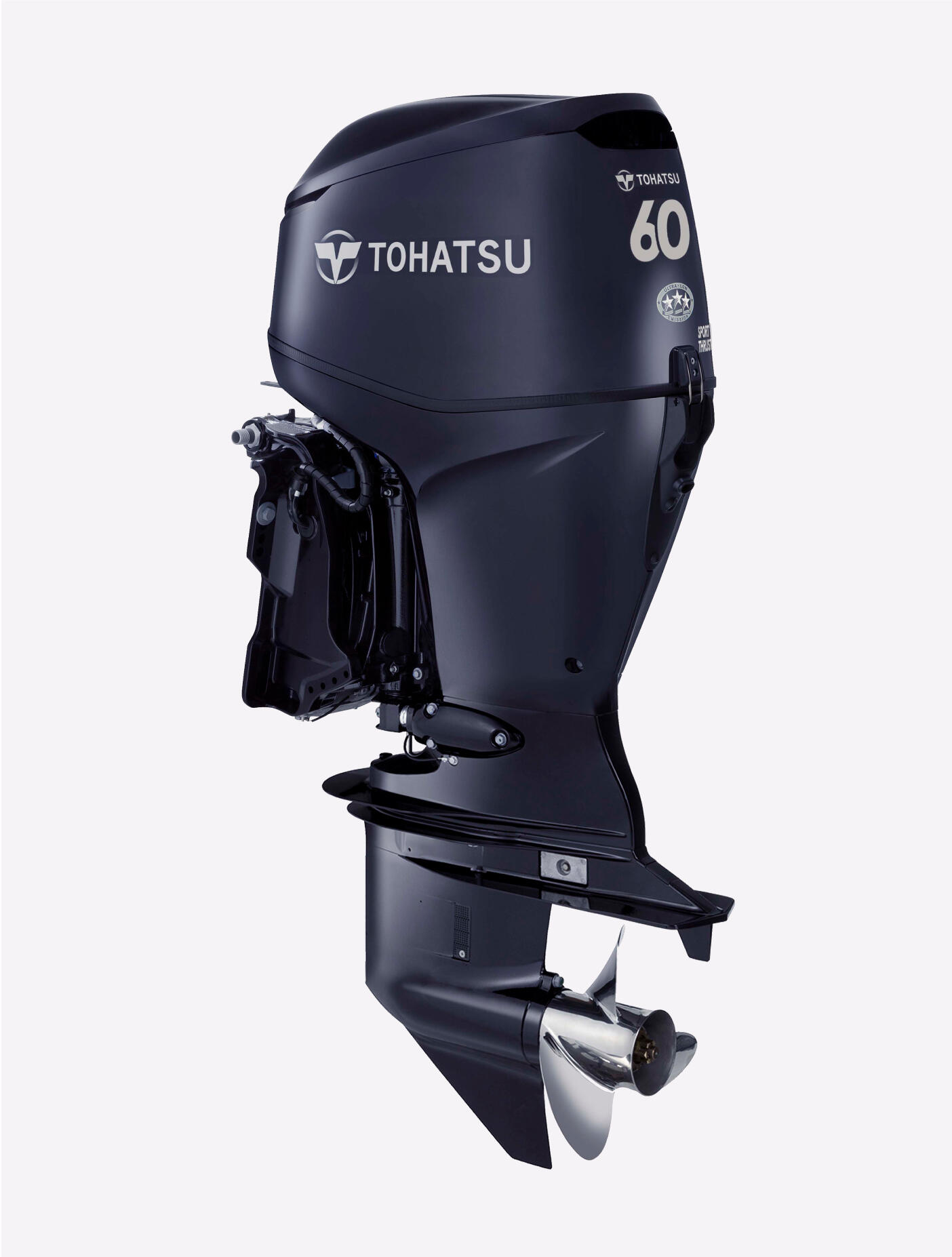

BFTW60

BFTW60

MID RANGE

Designed specifically for heavier loads, the BFTW 60 hp “High Thrust” model has a larger gear case and lower gear ratio that is specifically designed to give additional thrust for pontoon boats, work boats and heavier fiberglass boats.

The BFTW 60hp also features Maximum Acceleration System to deliver exceptional hole shots and Lean Burn Control for outstanding fuel economy at cruising speeds. The BFTW60 comes standard with a high output 22 amp alternator that produces nearly twice as many charging amps as other competitors. The BFTW 60 hp High Thrust model delivers everything you need plus more in an outboard.

Tohatsu 60 hp 4-Stroke Benefits

  • High output 22 amp alternator that produces nearly twice as many charging amps as some competitors
  • A unique gear case designed to give additional power and thrust to push heavier loads such as pontoon boats, work boat or heavier fiberglass boats
  • The BFTW60 tiller version offers a full 50 degrees of steering to port and to starboard
  • Double sealed multi-layered paint process to help protect against corrosion
  • Ultra-low 3 star CARB emission approved
  • 5 Year limited warranty

Four Stroke Technology

  • Lightweight MikuniR intake helps build low end torque
  • Lean burn control for better fuel economy at cruising speeds
  • Maximum Acceleration System helps to delivers an exceptional hole shot
  • Non-linear rubber mounts provide smoother operation at all engine speeds
  • A crankshaft-driven trochoid oil pump ensures long-term durability of critical engine components
  • Optimized fuel injection delivers the precise amount of fuel/air to each cylinder

Fundamentals for User Convenience and Reliability

  • Through the prop exhaust for a quieter ride
  • Built-in freshwater flushing system for easy routine flushing
  • Low 2.33:1 gear ratio
  • Electronic Control Module protocols allow engine data to be interfaced with on-board systems and systems displays, such as SONAR or GPS
  • Easy access side-mounted oil filter and oil filler ports

Warning and Protection

  • Low oil pressure warning
  • Overheat warning
  • Start-in-gear protection
  • Over-rev. limiter

FEATURES

4-front Corrosion Protection System

A patented, “Double Sealed” multi-layered paint process, sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.

Multi Function Tiller Handle

Ergonomically designed shift lever offers smooth shifting for convenience and comfort. Throttle friction allows fine-tuning of the tiller for safety. Up front shift lever, PTT switch, and engine alert lamps provide added convenience.

SPECIFICATIONS

EngineSOHC 3 Cylinder/12 Valves
Output60 hp (44.1 kw)
Displacement998 cc (61.0 cu.in.)
Bore x Stroke73 x 80 mm (2.9 x 3.1 in)
StartingElectric
Control TypeRemote Control
Gear ShiftForward – Neutral – Reverse
Gear Ratio2.33:1
Ignition SystemMicroComputer Programmed
Transom Height20″
FuelUnleaded Gasoline (87 Octane) or higher
Oil TypeNMMA Certified FC-W® 4-stroke oil** SAE 10W-30 (SF, SG, SH, SJ)
Oil Capacity0.7 gal. (2.7L) with filter
Weight*262 lbs. (119 kg)
Alternator Output12V, 240W, 22A
Max. RPM Range5,000 – 6,000
Programmed Fuel InjectionStandard
Direct Fuel InjectionStandard
Start In Gear ProtectionStandard
Thermostat Controlled Cooling SystemStandard
Through-The-Prop ExhaustStandard
Overheat BuzzerStandard
Power Trim and TiltStandard
Oil Pressure WarningStandard
High Thrust Gear CaseStandard
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
ModelMSRPShaft LengthCylindersElectric StartRemote ControlPower
Trim &Tilt
Power Thrust
BFTW60ALRTA$12,193203SSSS
S:Standard
  • MSRP is the “Manufacturer’s Suggested Retail Price” (US$). Actual retail price may vary. Please contact your local dealer for actual retail price.
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
