MD35JET

MD35JET

MID RANGE

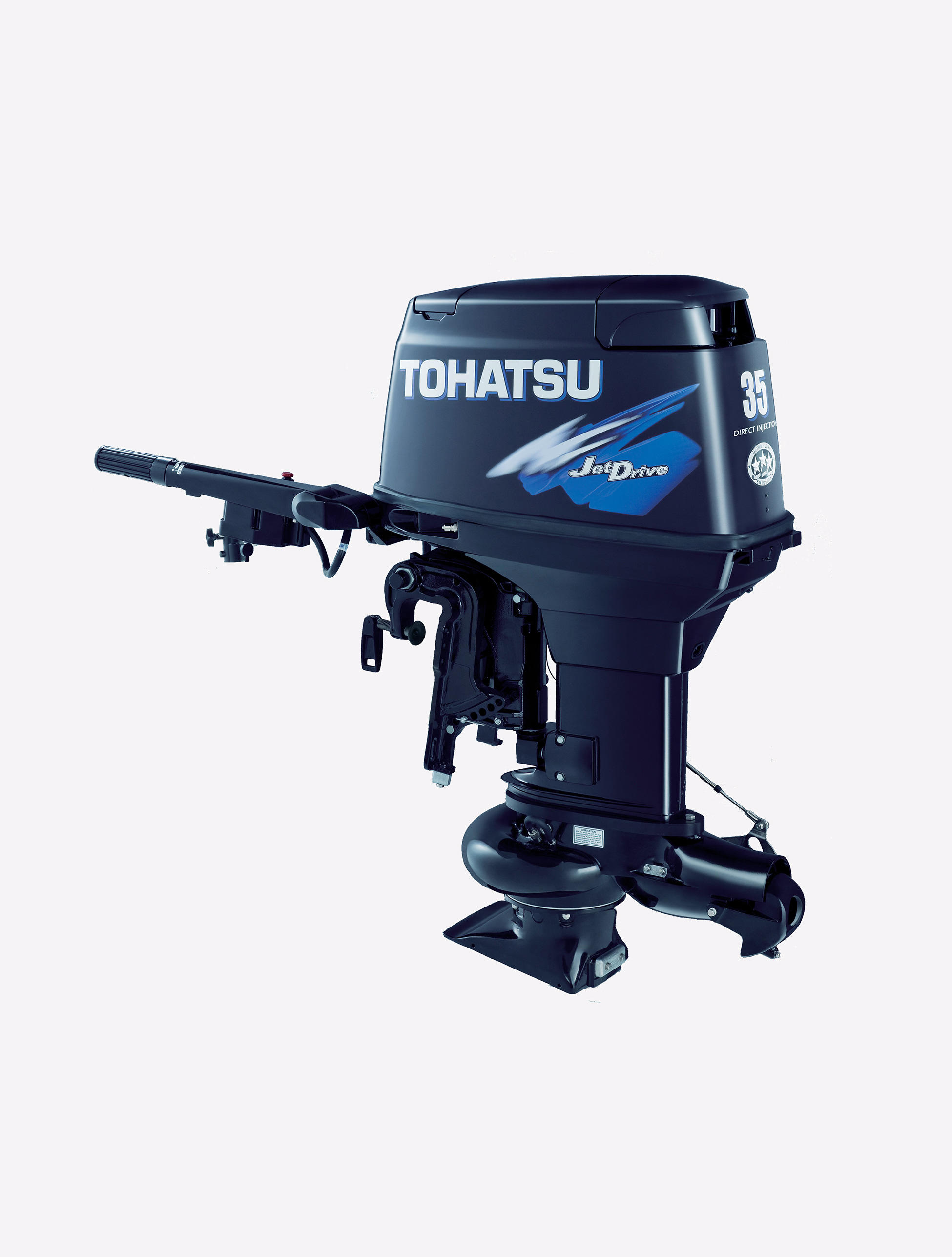

Don’t limit your hunting and fishing locations. With Tohatsu’s 35hp Jet Drive TLDI® you can reach waters that are difficult to reach with a propeller-driven outboard.

Equipped with a factory-installed jet drive, this engine uses the power of our 50hp TLDI® and is also backed by a 5 year limited warranty. Choose this model and you can expect a reliable, tough engine that will be your partner out on the water for a very long time.

Tohatsu 35hp JET TLDI Logo® Benefits

  • Air assisted direct fuel injection system that provides excellent fuel economy
  • Extremely quiet operation
  • Excellent horsepower-to-weight ratio
  • Lightweight and compact
  • Ultra-low emission, EPA and CARB approved
  • 5 Year limited warranty

High Performance and Easy Operation

  • Inductive ignition system for reliable starting
  • Oil reservoir located on the top of the motor for quicker and easier refill onboard
  • Multi-point oil injection system to more completely lubricate vital engine components
  • Remote control box**

Fundamentals for User Convenience and Reliability

  • Thermostatically controlled cooling system for consistent engine temperature
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance
  • User adjustable idle and trolling speeds
  • Tachometer**

Warning and Protection

  • Low oil level warning (visual and audible)
  • Overheat warning (visual and audible)
  • Battery voltage warning (visual only)
  • Start-in-gear protection for safer engine starting
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Over-rev. limiter
** Remote control models

FEATURES

The TLDI® series are Tohatsu’s award winning outboard motors that have an established reputation for being compact in size while demonstrating highly desired features such as low emissions and high fuel economy that are demanded by the new generation of boaters.
They are powered by a direct fuel injection system and a 32 bit ECU (Engine Control Unit). The ECU gives precise fuel injection instructions in accordance to the operating conditions detected by the multiple sensors located on the motor. The TLDI® outboard motors meets all of the emission regulations stipulated by EPA (Environmental Protection Agency) and CARB (California Air Resources Board).

Click here to read our TLDI® series “Frequently Asked Questions” page.

Engine Control Unit (ECU)

The 32 bit engine control unit controls the fuel injection and ignition timing for TLDI® outboards.

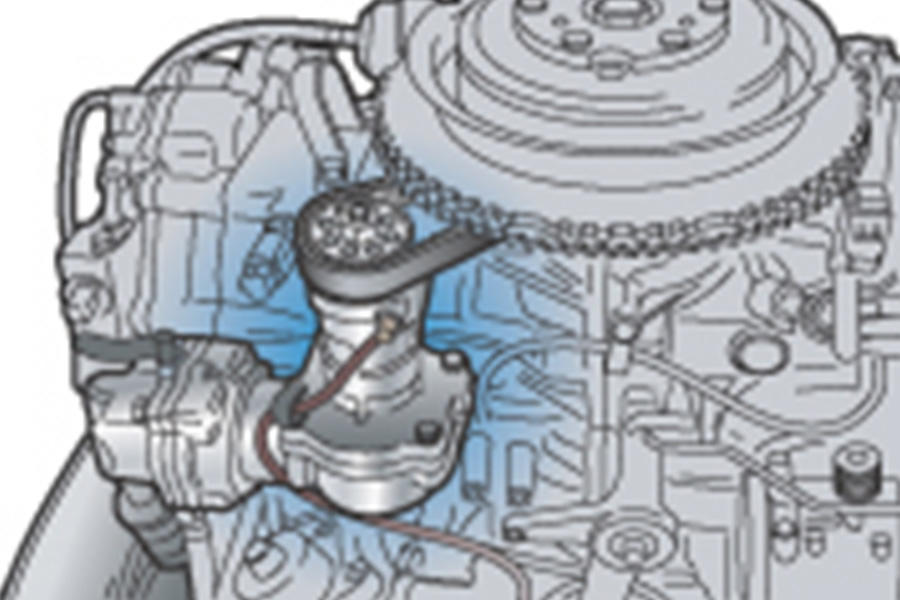

Air Compressor

One of TLDI®‘s essential engine components that is the driving force in achieving stabilized fuel injection.

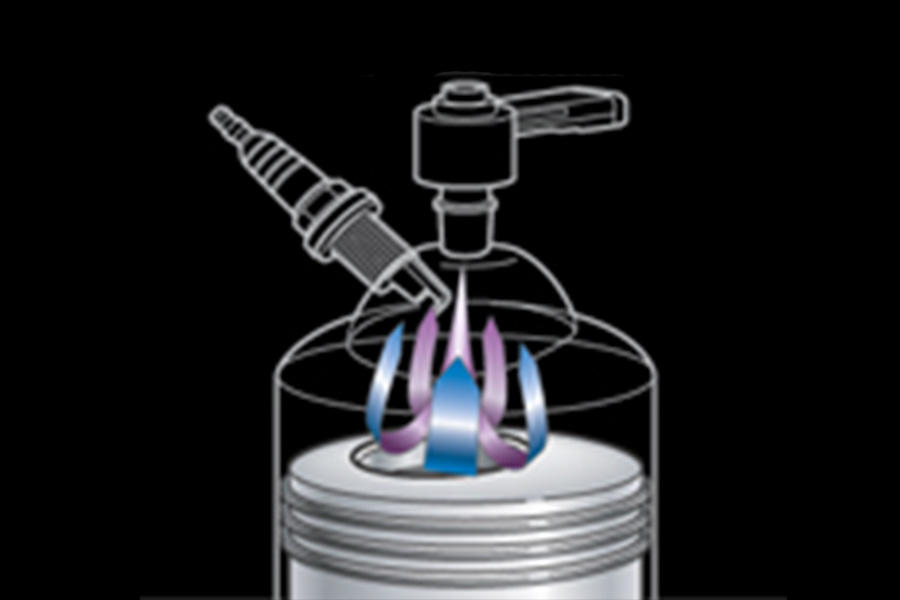

Direct fuel Injection into Cylinders

Due to the intrinsic design of the chamber on the cylinder head, the finely atomized fuel mist created by the fuel injector is injected near the spark plug to achieve ideal combustion.

Multifunctional Tachometer

The tachometer informs the operator of potential problems through the meter indicator and warning lamp. (Remote models only.)

3-Step Trolling Speed Control

The idling speed can be set to any of the three rpm ranges, 700, 800 or 900, by adjusting it on your key switch. This feature allows you to select the ideal trolling speed for maneuvering during a variety of current and wind conditions.

SPECIFICATIONS

Engine (No. of Cylinder)3
OutputJet Pump 35hp (26.1 kw) Horsepower 50 hp (36.8 kw)
Displacement697 cc (42.5 cu.in.)
Bore x Stroke68 x 64 mm (2.68 x 2.52 in)
StartingElectric
Control TypeRemote Control or Tiller Handle
Gear ShiftForward – Neutral – Reverse
Gear Ratio1:1
Transom Height20″
FuelUnleaded Gasoline (87 Octane)
Oil TypePremium TCW-3 or Recommended
Fuel TankOptional
Weight*196.2 lbs. (89 kg)
Alternator Output12V, 280W, 23A
Max. RPM Range5,150 – 5,850
Direct Fuel InjectionStandard
Inductive Ignition SystemStandard
Start In Gear ProtectionStandard
Thermostat Controlled Cooling SystemStandard
Through-Jet ExhaustStandard
Power Trim and TiltOption
Variable Idle Speed700, 800, 900 rpm
* Weight specification is based on the lightest version.
Specifications and descriptions are subject to change without notice.
ModelMSRPShaft LengthCylindersElectric StartTiller HandleRemote Control12V Charging
System
Power
Trim &Tilt
Oil injectionTachometer
MD35B2JETEFOL$9,1890203SS S S
MD35B2JETEFTOL$9,363203SS SSS
MD35B2JETEPOL$9,180203S SS SS
MD35B2JETEPTOL$9,363203S SSSSS
S:Starndard
  • MSRP is the “Manufacturer’s Suggested Retail Price” (US$). Actual retail price may vary. Please contact your local dealer for actual retail price.
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
