MFS30

MFS30

MID RANGE

Whether you are cruising, fishing or working, the 30 hp EFI (Electronic Fuel Injection) 4-stroke outboard will meet your needs. We are the first to offer a battery-less EFI system that provides quick throttle response and very smooth rides on the water. Now available in a second color option, Beluga White, allowing boaters to choose which engine color best fits their boat.

The upper and lower motor cover features a more modern look, and easier access to regular maintenance items. Plus, the multi-function tiller handle comes standard on all 30 hp tiller models with electric start. This tiller includes all controls conveniently located on the handle for easy access giving you more control, better maneuverability and increased safety.

When you need compact power, the 30hp four stroke has exactly what you need.

Tohatsu 30 hp 4-Stroke Benefits

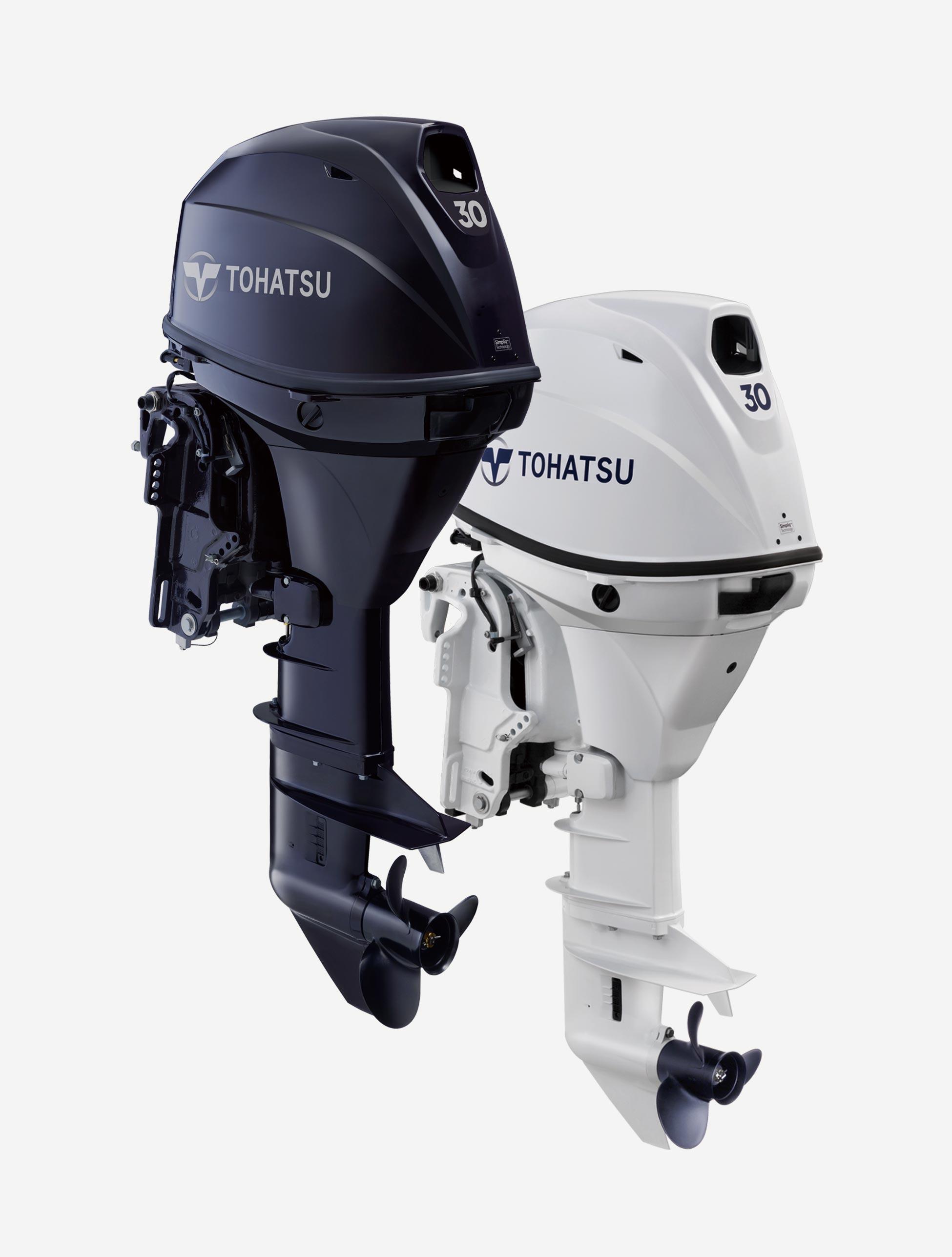

  • Sleek design with two color options: Aqua Marine Blue (MFS30C) and Beluga White (MFS30CW)
  • Designed with proven technology
  • Advanced cross-flow induction for smooth operation
  • Canister style oil filter for easy replacement
  • Larger capacity oil reservoir for optimum lubrication
  • Tuned intake system for crisp takeoffs
  • Ultra Low emission, EPA and CARB approved
  • 5 Year limited warranty

High Performance and Easy Operation

  • Lower gear ratio from 1.92:1 to 2.17:1 gives you better low end torque and the ability to turn a higher pitch prop for better top end performance
  • Electronic Fuel Injection (EFI)
  • The boating industry’s first battery-free, manual start EFI 4-stroke
  • Digital CD ignition system for quicker starts
  • Large alternator and rectifier for superior battery charging
  • Adjustable steering friction and trim tab for reducing steering effort
  • Front mounted shift lever for easier operation
  • Shallow water drive, 6 tilt positions*
  • Power trim and tilt*
  • Remote control**

Fundamentals for User Convenience and Reliability

  • Redesigned upper and lower motor cover for a more modern look and easier access to regular maintenance items
  • Built in fresh water flush system on lower motor cover for easy access
  • Through-the-prop exhaust for a quieter ride
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing liner for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance
  • 6.6 gallon (25 liter) fuel tank including fuel fittings and fuel line
  • Aluminum propeller

Warning and Protection

  • Overheat warning (audible)
  • Low oil pressure warning (audible)
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Start-in-gear protection for safer engine starting
  • Over-rev. limiter
*Certain models
** Remote control models

FEATURES

Multi-Function Tiller Handle is available on select models.

The multi-function tiller handle features an ergonomically designed shift lever for easy and convenient shifting as well as a longer throttle grip with 110 degrees rotation for easier maneuverability. All controls on the new multi-function tiller are conveniently located on the handle for easy access and control. More specifically, the gear shift, throttle control, trim switch, safety lanyard cord, TLDI® warning lights, and electric start key switch are all integrated in the tiller handle.

Engine Control Unit (ECU)

The 16 bit ECU precisely controls the fuel injection and ignition timing for 4-stroke engines.

Battery-Less Electronic Fuel Injection

The 30hp and 25hp now have the industry’s first battery-less electronically controlled fuel injection that provides quick throttle response, excellent fuel economy, and very smooth rides on the water.

Tuned Intake Manifold

The tuned intake manifold provides increased low & mid speed torque and quieter operation.

Tubular Air-Intake

The tubular structure of the air-intake, originally developed by Tohatsu, helps to take in necessary airflow to the engine while preventing water from entering into the motor cover.

Built-in freshwater flushing system

Standard built-in freshwater flushing system simplifies routine engine flushing.

SPECIFICATIONS

Engine (No. of Cylinder)3
Output30 hp (22.1 kw)
Displacement526 cc (32.09 cu.in.)
Bore x Stroke61 x 60 mm (2.4 x 2.36 in)
StartingElectric or Manual
Control TypeRemote Control or Tiller Handle
Gear ShiftForward – Neutral – Reverse
Gear Ratio2.17:1
Propeller Selection Range8″ – 14″
Transom Height15″, 20″
FuelUnleaded Gasoline (87 Octane)
Oil TypeNMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
Oil Capacity2 qt. (1800 mL)
Fuel Tank6.6 US Gal. (25 Lit) Separate Fuel Tank
Weight*157 lbs. (71.5 kg)
Alternator Output12V, 180W, 15A
Max. RPM Range5,250 – 6,250
Electronic Fuel InjectionStandard
Digital CD Ignition SystemStandard
Start In Gear ProtectionStandard
Thermostat Controlled Cooling SystemStandard
Through-The-Prop ExhaustStandard
Power Trim and TiltOption
Oil Pressure WarningStandard
Shallow Water DriveOption
ModelMSRPShaft LengthCylindersElectric StartTiller HandleRemote Control12V Charging
System
Power
Trim &Tilt
Propeller
MFS30CL$4,861203 S   S
MFS30CEFTS$6,027153SS1 SSS
MFS30CEFTL$6,063203SS1 SSS
MFS30CEPTS$6,027153S SSSS
MFS30CEPTL$6,063203S SSSS
MFS30CWEFTS (white)$6,170153SS1 SSS
MFS30CWEFTL (white)$6,206203SS1 SSS
MFS30CWEPTS (white)$6,170153S SSSS
MFS30CWEPTL (white)$6,206203S SSSS
S:Standard
1:Multi-Function Tiller Handle
  • MSRP is the “Manufacturer’s Suggested Retail Price” (US$). Actual retail price may vary. Please contact your local dealer for actual retail price.
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
