MFS50

MFS50

MID RANGE

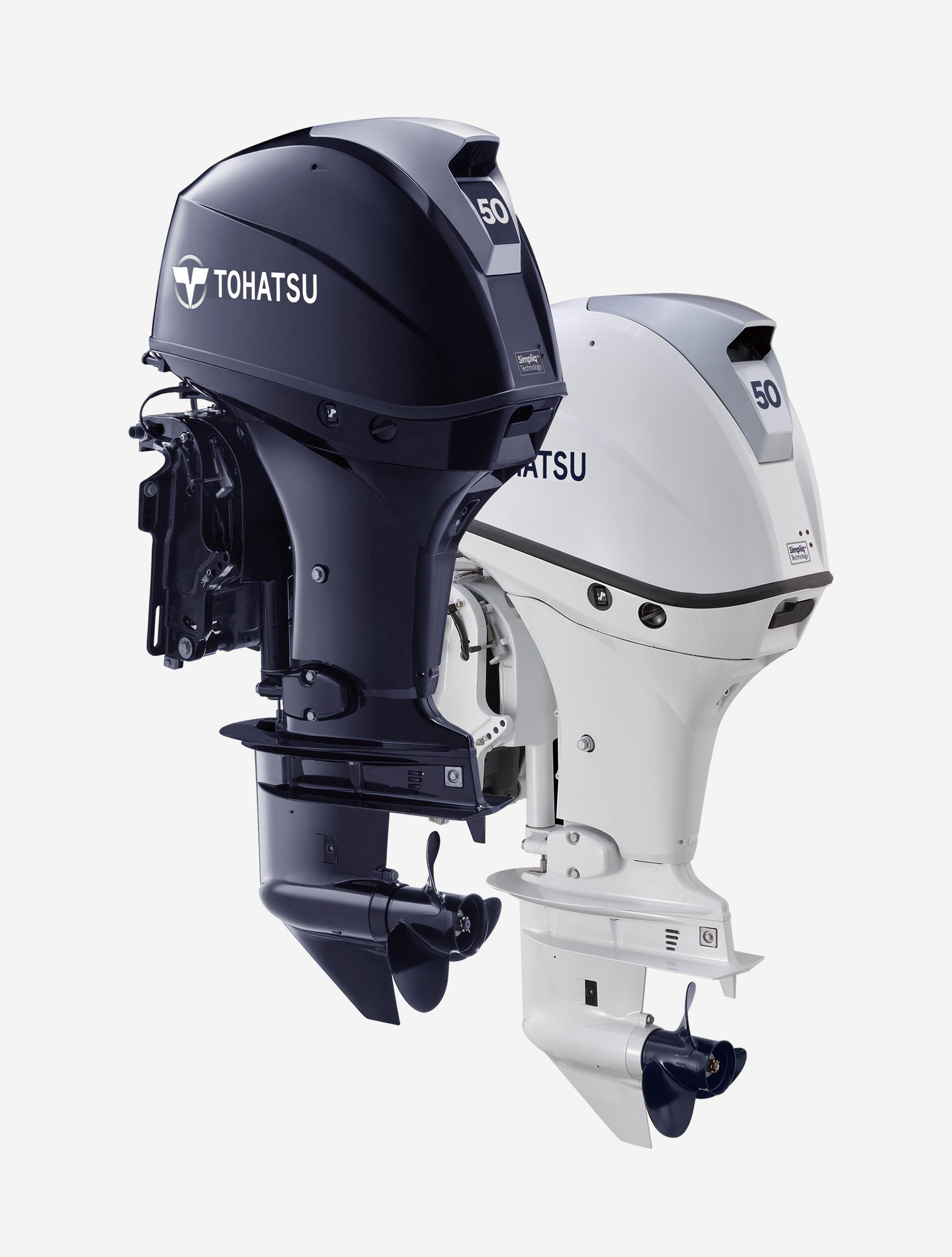

What is the one thing every boater looks for in an outboard motor? The lightest weight motor possible. Tohatsu’s 50hp four stroke now comes in a second color option, Beluga White, allowing boaters to choose which engine color best fits their boat. You asked and we listened by outfitting the 50hp EFI four stroke with an improved gear case with a lower gear ratio, giving you the increased low end torque your boat needs.

This outboard also has variable idling speed control from 650 to 950rpm’s. And the MFS50’s stainless steel water pump housing liner gives you outstanding durability. With the 50hp four stroke’s power to quickly reach your destination, exceptional fuel performance to keep gas costs down and proven electronic fuel injection technology for worry-free boating, you’ve never had a day on the water quite like this.

Tohatsu 50 hp 4-Stroke Benefits

  • Sleek design with two color options: Aqua Marine Blue (MFS50A) and Beluga White (MFS50AW)
  • Outstanding fuel economy
  • Lightest weight in its class, starting at just 209 lbs.
  • Available in short (15”) & long (20”) shaft lengths
  • Ultra-low 3 star CARB emission approved
  • 5 Year limited warranty

High Performance and Easy Operation

  • Electronic Fuel Injection
  • Digital CD ignition system for quicker starts
  • High output 21 amp alternator
  • New and improved gear case with lower gear ratio for increased low end torque
  • Adjustable steering friction and trim tab for reducing steering effort
  • Power trim & tilt

Fundamentals for User Convenience and Reliability

  • Through the prop exhaust for a quieter ride
  • Built-in freshwater flushing system for easy routine flushing
  • Variable idling speed control from 650 to 950 rpm’s
  • A camshaft-driven trochoid oil pump ensures long-term durability of critical engine components
  • Stainless steel water pump housing liner for outstanding durability

Warning & Protection

  • Low oil pressure warning (visual and audible)
  • Overheat warning (visual and audible)
  • Battery voltage warning (visual only)
  • Start-in-gear protection for safer engine starting
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Over-rev. limiter

FEATURES

Multi-Function Tiller Handle is available on select models.

The multi-function tiller handle features an ergonomically designed shift lever for easy and convenient shifting as well as a longer throttle grip with 110 degrees rotation for easier maneuverability. All controls on the new multi-function tiller are conveniently located on the handle for easy access and control. More specifically, the gear shift, throttle control, trim switch, safety lanyard cord, TLDI® warning lights, and electric start key switch are all integrated in the tiller handle.

Variable Idling System

allows trolling speed (RPM) to be adjusted in four levels from 650rpm to 950rpm (100rpm each) using the key-switch.

Built-in freshwater flushing system

Standard built-in freshwater flushing system simplifies routine engine flushing.

Audio Visual Warning System

The tachometer informs the operator of potential problems such as low oil pressure, low battery, and overheat, through the built-in warning lights. (For models equipped with a tachometer)

SPECIFICATIONS

Engine3 Cylinder
Output50 hp (36.8 kw)
Displacement866 cc (52.9 cu.in.)
Bore x Stroke70 x 75 mm (2.76 x 2.95 in)
StartingElectric
Control TypeRemote or Tiller
Gear ShiftForward – Neutral – Reverse
Gear Ratio2.08:1
Ignition SystemMicroComputer Programmed
Transom Height15″, 20″
FuelUnleaded Gasoline (87 Octane) or higher
Oil CapacityNMMA Certified FC-W® 4-stroke oil**
Weight*209 lbs. (95 kg)
Alternator Output12V, 252W, 21A
Max. RPM Range5,000 – 6,000
Electronic Fuel InjectionStandard
Digital CD Ignition SystemStandard
Start In Gear ProtectionStandard
Thermostat Controlled Cooling SystemStandard
Through-The-Prop ExhaustStandard
Overheat BuzzerStandard
Power Trim and TiltStandard
Oil Pressure WarningStandard
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
ModelMSRPShaft LengthCylindersElectric StartTiller HandleRemote Control12V Charging
System
Power
Trim &Tilt
TachometerPropeller
MFS50AEFTS$8,050153SS SS S
MFS50AEFTL$8,089203SS SS S
MFS50AEPTS$8,050153S SSSSS
MFS50AEPTL$8,089203S SSSSS
MFS50AWEFTS (white)$8,239153SS SS S
MFS50AWEFTL (white)$8,276203SS SS S
MFS50AWEPTS (white)$8,239153S SSSSS
MFS50AWEPTL (white)$8,276203S SSSSS
S:Standard
  • MSRP is the “Manufacturer’s Suggested Retail Price” (US$). Actual retail price may vary. Please contact your local dealer for actual retail price.
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
