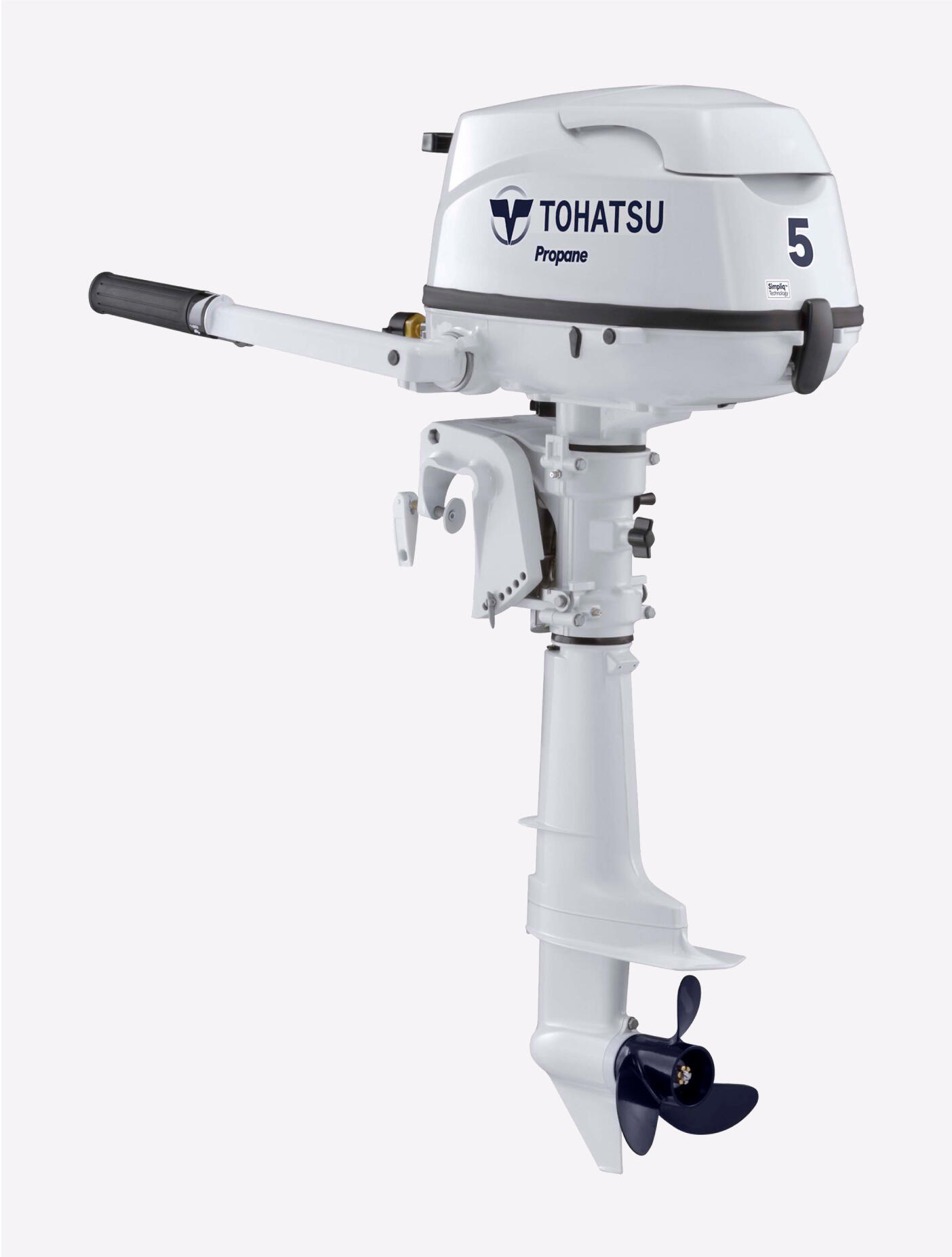

MFS5LPG

MFS5LPG

PORTABLE

Thanks to Tohatsu’s 5hp Liquefied Petroleum Gas (LPG) outboard, sailors are no longer forced to carry gasoline on board. The 5hp LPG comes equipped with a fuel line that will connect to any standard North American propane tank. Our innovative LPG outboard will run for a full 5 hours at WOT on a single 11lb propane tank, without sacrificing performance.

Exclusive to Tohatsu’s LPG outboard is the Safety Fuel Shut Off Valve which keeps propane fuel from continuously running when engine is not in use. Plus, since the 5hp LPG does not require ethanol or gas, this propane outboard requires almost zero maintenance on fuel related components. We offer a 20” and 25” shaft Sail Pro model which includes a 12V 60W 5A charging system and high thrust prop. What sailor doesn’t want a virtually maintenance free engine that has their back?

Tohatsu 5hp Propane 4-Stroke Benefits

  • Sailors are no longer forced to carry gasoline on board
  • No possibility of ethanol/gasoline related failures
  • Virtually maintenance free fuel system
  • 30% cleaner emissions*
  • Quieter operations without compromising engine performance
  • Ultra-low emission, EPA and CARB 3-Star rating approved
  • 5 Year limited warranty
*Based on Tohatsu Corporation Engineering Department data.

Easy Operation and Handling

  • Digital CD ignition for easier engine starting, quicker throttle response and smoother trolling
  • A larger recoil reel and compression release valve makes starting fast and easy
  • Shallow water drive and 6 trim positions
  • Adjustable steering friction for reducing steering effort
  • Optional steering lock kit available

Fundamentals for User Convenience and Reliability

  • Through-the-prop exhaust for a quieter ride
  • Aluminum rubber hub propeller for quieter operation, less vibration and better performance
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing liner for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance

Protection

  • Low oil pressure indicator
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Start-in-gear protection for safer engine starting
  • Over-rev. limiter
  • Exclusive Fuel Safety Shut Off Valve

FEATURES

Front Mounted Shift Lever

Tohatsu’s front mounted shift lever, an industry first in its class, allows for easy shifting and maneuverability.

Propeller Hub Exhaust

Through-the-prop exhaust helps reduce engine noise.

Larger Carrying Handle and efficiently designed Holding Grip on bottom cowl

Tohatsu installed a holding grip on the bottom of the cowl as well as a larger carrying handle, making transporting this compact model even easier.

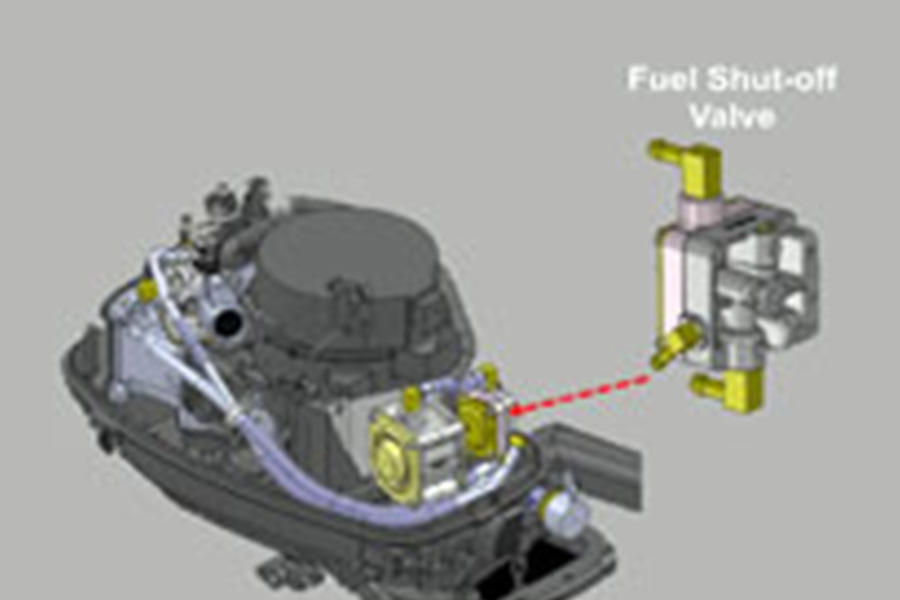

Safety Fuel shut-off valve

keeps propane fuel from continuously running when engine is not in use.

SPECIFICATIONS

Engine (No. of Cylinder)1
Output5 hp (3.7 kw)
Displacement123 cc (7.5 cu.in.)
Bore x Stroke59 x 45 mm (2.32 x 1.77 in)
StartingManual
Control TypeTiller Handle
Gear ShiftForward – Neutral – Reverse
Gear Ratio2.15:1
Propeller Selection Range6″ – 9″
Transom Height15″, 20″, 25″
FuelLPG HD-5 (More than 65% Propane)
Fuel Consumption @ WOTFuel Efficiency: 11lb (5kg) 5h @ WOT
Oil Capacity15 fl. oz. (450 mL)
Max Torque7.2/4,100 (N-m/rpm)
Regulator2-Step Diaphragm
Weight*59.5 lbs.
Alternator Output**12V, 60W, 5A
Max. RPM Range5,000 – 6,000
Digital CD Ignition SystemStandard
Safety Fuel Shut Off ValveStandard
Start In Gear ProtectionStandard
Thermostat Controlled Cooling SystemStandard
Through-The-Prop ExhaustStandard
Oil Pressure WarningStandard
Shallow Water DriveStandard
* Weight specification is based on the lightest version.
** Optional on short shaft model, standard on Sailpro models.
Specifications and descriptions are subject to change without notice.
ModelMSRPShaft LengthCylindersTiller Handle12V Charging
System
Propeller
MFS5CLPGS$1,771151S S
MFS5CLPGSPROL*$2,006201SSS
MFS5CLPGSPROUL*$2,049251SSS
S:Standard
* Sail Pro models come standard with a high-thrust prop and 12V charging system.
  • MSRP is the “Manufacturer’s Suggested Retail Price” (US$). Actual retail price may vary. Please contact your local dealer for actual retail price.
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
