MFS60

MFS60

MID RANGE

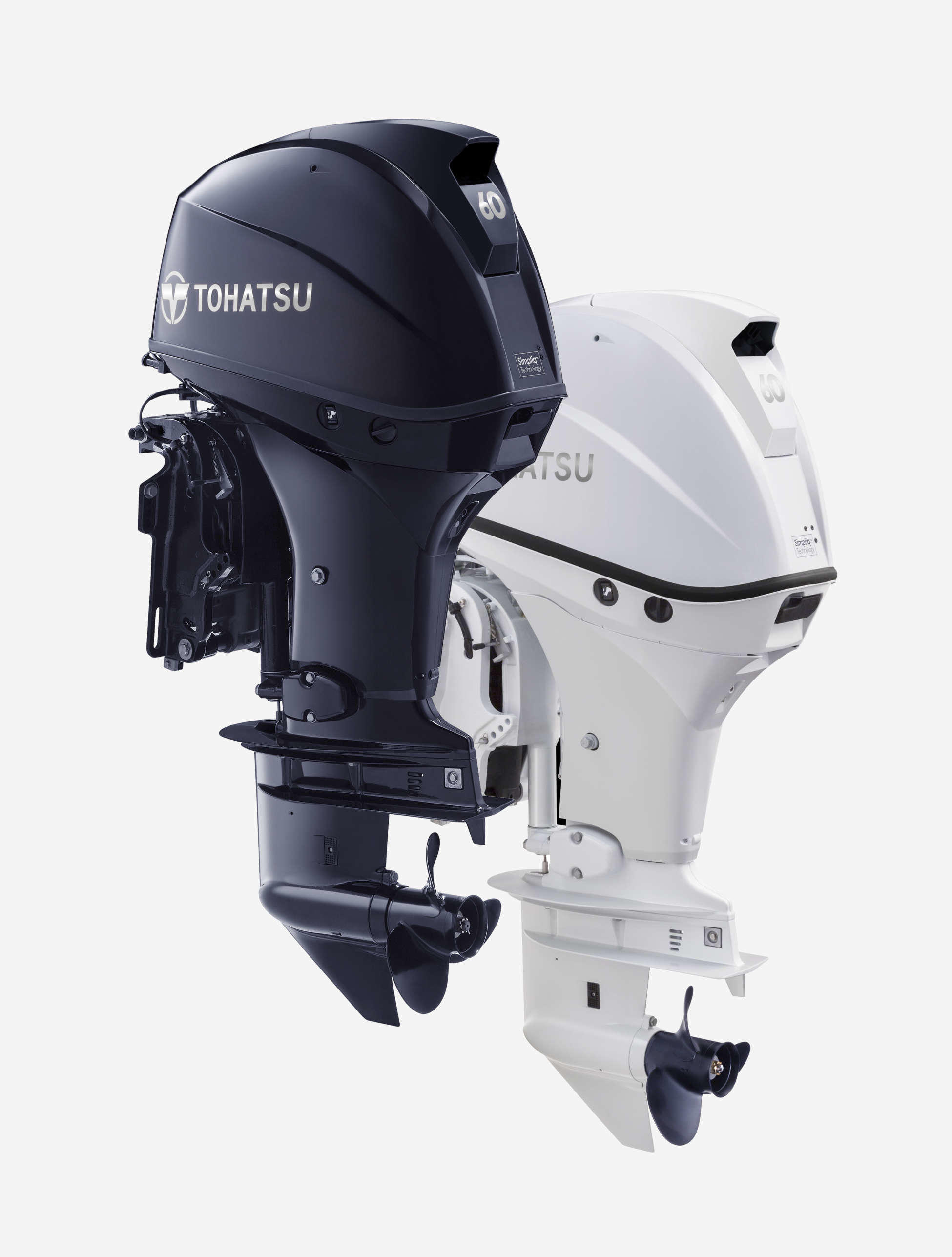

With a sleek look and two color options (Aqua Marine Blue and Beluga White), the new MFS60A 4-stroke outboard has been created with new technologies and characteristics. By using proven technology such as; electronic fuel injection (EFI), dual intake valves, anodized pistons and a modified roller rocker arm, your time on the water will be equipped with smoother and faster acceleration.

Tohatsu is determined to provide an engine to back you up on all your activities. Armed to deliver a powerful ride, the 60hp EFI four stroke not only offers accelerating speed while using less fuel, but provides the lightest weight in its class to muscle your boat applications without sacrificing performance.

Equipped with standard features such as variable idle speed allowing you to change the idle speed from 650 to 950 rpm’s, a low gear ratio giving you the increased low end torque your boat needs, a freshwater flushing system designed to make routine flushing easier, and a high output 21 amp alternator, the MFS60 provides the industry leading features you expect from Tohatsu.

Tohatsu 60 hp 4-Stroke Benefits

  • Sleek design with monochrome tilt handle
  • SOHC with unique 9-Valve Design
  • Outstanding fuel economy
  • Lightest weight in its class, starting at just 217 lbs.
  • Available in long (20”) & ultra long (25”) shaft lengths
  • Ultra-low 3 star CARB emission approved
  • 5 Year limited warranty

High Performance and Easy Operation

  • Electronic Fuel Injection
  • Digital CD ignition system for quicker starts
  • High output 21 amp alternator
  • New and improved gear case with lower gear ratio for increased low end torque
  • Adjustable steering friction and trim tab for reducing steering effort
  • Power trim & tilt

Fundamentals for User Convenience and Reliability

  • Through the prop exhaust for a quieter ride
  • Built-in freshwater flushing system for easy routine flushing
  • Variable idling speed control from 650 to 950 rpm’s
  • A camshaft-driven trochoid oil pump ensures long-term durability of critical engine components
  • Stainless steel water pump housing liner for outstanding durability

Warning & Protection

  • Low oil pressure warning (visual and audible)
  • Overheat warning (visual and audible)
  • Battery voltage warning (visual only)
  • Start-in-gear protection for safer engine starting
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Over-rev. limiter

FEATURES

Multi-Function Tiller Handle is available on select models.

The multi-function tiller handle features an ergonomically designed shift lever for easy and convenient shifting as well as a longer throttle grip with 110 degrees rotation for easier maneuverability. All controls on the new multi-function tiller are conveniently located on the handle for easy access and control. More specifically, the gear shift, throttle control, trim switch, safety lanyard cord, TLDI® warning lights, and electric start key switch are all integrated in the tiller handle.

Variable Idling System

allows trolling speed (RPM) to be adjusted in four levels from 650rpm to 950rpm (100rpm each) using the key-switch.

Built-in freshwater flushing system

Standard built-in freshwater flushing system simplifies routine engine flushing.

Audio Visual Warning System

The tachometer informs the operator of potential problems such as low oil pressure, low battery, and overheat, through the built-in warning lights. (For models equipped with a tachometer)

SPECIFICATIONS

Engine3 Cylinder
Output60 hp (44.1 kw)
Displacement866 cc (52.9 cu.in.)
Bore x Stroke70 x 75 mm (2.76 x 2.95 in)
StartingElectric
Control TypeRemote or Tiller
Gear ShiftForward – Neutral – Reverse
Gear Ratio2.08:1
Ignition SystemMicroComputer Programmed
Transom Height20″, 25″
FuelUnleaded Gasoline (87 Octane) or higher
Oil TypeNMMA Certified FC-W® 4-stroke oil**
Weight*217 lbs. (98.5 kg)
Alternator Output12V, 252W, 21A
Max. RPM Range5,000 – 6,000
Electronic Fuel InjectionStandard
Digital CD Ignition SystemStandard
Start In Gear ProtectionStandard
Thermostat Controlled Cooling SystemStandard
Through-The-Prop ExhaustStandard
Overheat BuzzerStandard
Power Trim and TiltStandard
Oil Pressure WarningStandard
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
ModelMSRPShaft LengthCylindersElectric StartTiller HandleRemote Control12V Charging
System
Power
Trim &Tilt
Propeller
MFS60AEFTL$8,521203SS SSS
MFS60AEFTUL$8,857253SS SSS
MFS60AEPTL$8,521203S SSSS
MFS60AEPTUL$8,857253S SSSS
MFS60AWEFTL$8,664203SS SSS
MFS60AWEPTL$8,664203S SSSS
S:Standard
  • MSRP is the “Manufacturer’s Suggested Retail Price” (US$). Actual retail price may vary. Please contact your local dealer for actual retail price.
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
